Used Boats: 4 Adverts Displaying: 1-4
Following the recent successful delivery of the larger vessel from the same owners, can offer the following for sale:
Cutter Suction Dredger 'Nezahualcoyotl' - modular 20'' / 500mm
Model: IHC Beaver 1500
Built: 1981, IHC Netherlands
Length: 44.04m
Beam: 9.05m
Depth: 2.00m
Dredge Ladder: 20.00m
Discharge diameter: 500mm
Main engine: CAT D399 (1,250bhp)
Auxiliary engine: CAT 3408 (475bhp)
2 x spuds
2 x anchor booms
3 x winches
4 x side pontoons
Max water depth: 16m
Laid up and disassembled- last worked 3 years ago.
Asking price: on request...
read more

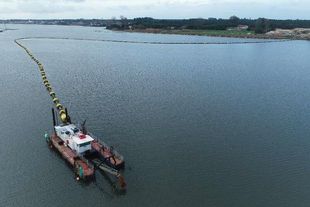

'Grou' - dismountable cutter suction dredger
====
Built: 2012, Jose Ruas Shipyard at Aveiro Portugal; running hours approx 11,000
LOA x Beam: 16 x 6m
Depth: 1.5 m
Mean draught with full bunkers: 1.00 m
Total weight: 35.34 ton
Cutting equipment: jet pump 240 m3 / hr @ 6 Bar and cutter - power 25W
Dredge pump: Idreco PK 350.185
Engine type Volvo Penta D16 - MH - 515kW
Genset: Volvo Penta TAD 531 GE
Maximum standard dredging depth: 10 m
Maximum production: 300 m3 / hr sand at 600 m
Pump output: 1,750 m3 / hr @ 4.5 Bar
Maximum discharge in metres: 2,000 m - d...
read more

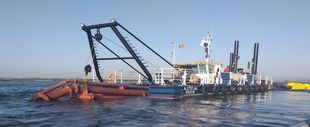

'Duck' - dismountable cutter suction dredger
====
Built: Jose Ruas Shipyard at Aveiro Portugal; ... - running hours approx ...
LOA x Beam: 19.99 x 6.50m
Depth: 1.5m
Mean draught with full bunkers: 1.00m
Total weight: 49.07 ton
Cutting equipment: jet pump 300m3 / hr @ 6 Bar and cutter - power 25kW
Dredge pump: Idreco PK 350.185
Engine type: Volvo Penta D16 - MH - 515kW
Genset: Himoinsa HFW-160
Maximum standard dredging depth: 12m
Maximum production : 300 m3 / hr sand at 600m
Pump output: 1,750 m3 / hr @ 4.5 Bar
Maximum discharge in metres: 2,000m - disch...
read more

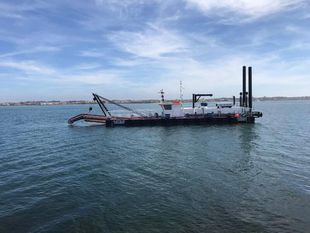

'Cegonha' - dismountable cutter suction dredger
=======
Built: 2019, Jose Ruas Shipyard at Aveiro Portugal; running hours approx 8,000
LOA x Beam : 19.99 x 6.50m
Depth: 1.5 m
Mean draught with full bunkers: 1.00 m
Total weight: 49.07 ton
Cutting equipment: jet pump 300 m3 / hr @ 6 Bar and cutter - power 25W
Dredge pump: Idreco PK 350.185
Engine type: Volvo Penta D16-MH - 515kW
Genset: Himoinsa HFW-160
Maximum standard dredging depth: 12 m
Maximum production: 300 m3 / hr sand at 600m
Pump output: 1,750 m3 / hr @ 4.5 Bar
Maximum discharge in metres: 2000 m -...
read more
