Description

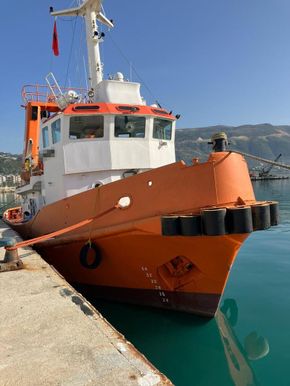

COB0102 Tug - Single Screw For Sale and Charter
- VIA OWNERS' REPRESENTATIVES -

Fuel capacity: 100 cbm

Area of operation: A1 + A2 + A3

Next SS March 2029

Latest Dry Dock: February 2024

TANKS
FO TANK CAPACITY = 73,358 m3
*DAILY / SERVICE TANK P/S = 4,500 m3
*TANK DB NO.3 P/S= 18,134 m3
*TANK NO.7 P/S = 14,045 m3

BALLAST TANK CAPACITY = 87,218 m3
* BALLAS TANK NO.2 P/S = 12,189 m3
* BALLAST TANK NO.9 P/S = 17,661 m3
* BALLAST TANK NO.10 P/S = 27,518 m3

FRESH WATER TANK CAPACITY= 9,670 m3
LO SUMP TANK CAPACITY = 2,582 m3
LO SPARE / CLEAN OIL = 2,178 m3
SLUDGE TANK CAPACITY = 0,368 m3
BILGE TANK CAPACITY = 0,368 m3
TANK SOLVENT = 3,840 m3
TANK FOAM = 4,664 m3

Specifications

Accommodation

Breakdown of Accommodation

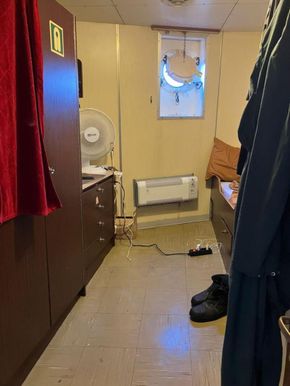

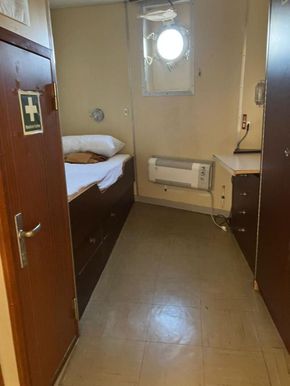

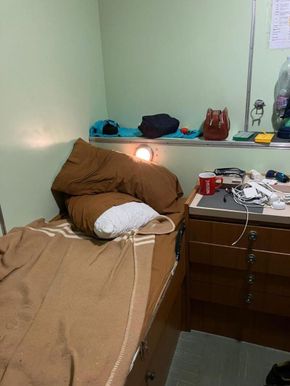

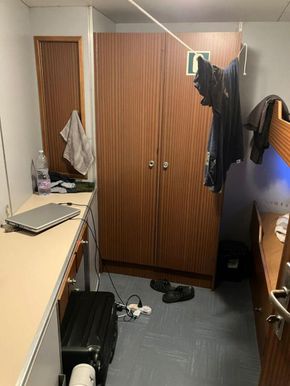

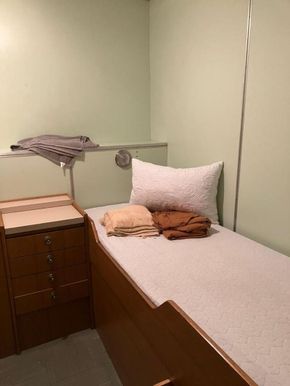

* 2 x Single Cabin ( upper deck )
* 2 x Single Cabin ( down )

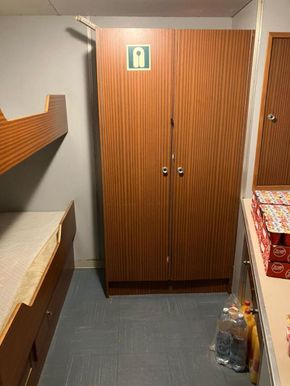

* 2 x Double Cabin ( down )

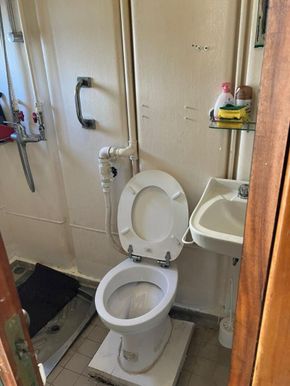

* 2 x common Toilet/shower ( upper deck ) one of toilet bowl the
seat pad already damage

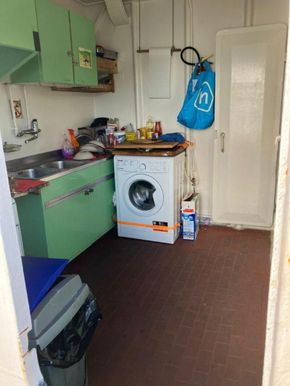

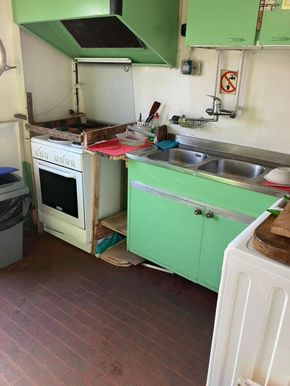

* Kitchen ( upper deck )
* Messroom ( upper deck )

Construction

Built (year and place) 1983,ITALY
Hull material STEEL
Length Overall (m) 25.05 m
Length between perp. (m) 24.36 m
Breadth (m) 7.60 m
Depth (m) 4.00 m
NT (tons) 55 tons
GT (tons) 185 tons

Equipment

AIR COMPRESSOR - SPERRE HLF2/77
Motor ( ABB / SN : CSN07-224214 )
Air comp #1 : Status = Good
Air comp #2 : Under Repair ( V/v High
Pressure / SN : 3037 ) Need spare

FO PURIFIER : Status = Good
Motor FO Purifier : SEL-ING CAPECCHI
Tipo : 90S4 ( SN 1272 )

LO PURIFIER : ALFA-LAVAL
Status = Good
Motor LO Purifier : SEL-ING CAPECCHI
Tipo : 90L4 ( SN 1273 )

FO TRANSFER PUMP x 2 : GARBARINO
ACOUT : Status = Good
Motor FO Transfer Pump : ELECTRO ADDA SPA Tipo : C 90 L (
SN 123859 )

STEERING PUMP X 2 : Status = Not Good

HYDRAULISK STYREMASKIN

FRE LUBRICATION PEACH PROPELER
( TORELL PUMP ) Status = Good

PRIMING LO PUMP M/E - ASEA
Status = Good

GEAR BOX LUBRICATION PUMP
Status = Good
WERDOHLER PUMPENFABRIK
RICK MEIER GMBH ( WP )
Postfach 340.D-5983 Balve 2

GEAR BOX : RENK ( Zahnrader Fabrik Renk
Aktiengesellschaft ) AUSBURG
Status = Good

EMERGENCY FW PUMP M/E : Fw GARBARINO ACQUI
Status = Good

CAPSTAN HYDRAULIC PUMP
Status = Good

ANCHOR HYDRAULIC PUMP
Status = Good

FIRE PUMP
Status = Good
ELECTRO ADDA SPA
Tipo : C160M (SN 301222)

BILGE PUMP
Status = Good
Tel & WhatsApp: 0034 669 70 65 31 / Email: info@blueseabrokers.net
Skype: blueseabrokers / Website: blueseabrokers.net
ELECTRODA ADDA SPA
Tipo : C112M (SN 112735)

FRESH WATER PUMP
Status : Good
PEDROLLO

EMERGENCY AIR COMPRESSOR
RUGGERINI motor ( RDK 80 )
RUDDER : RF45X
Status = Good

Speich 14194 Window windshield wiper (status OK)

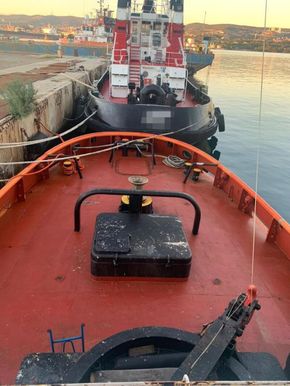

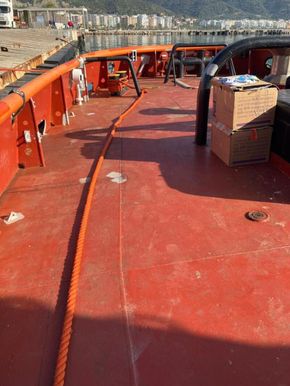

Towing Equipment
* Towing Hook (some nipple's grease need to be replaced to
make sure emergency release is working properly)

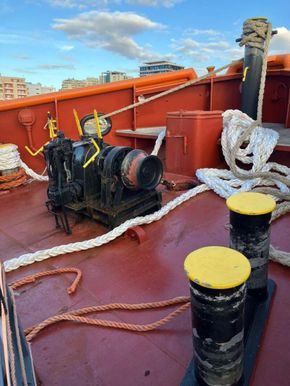

* Aft Capstan (status OK)
* Shackle 35 T x 1 pc
Shackle 25 T x 2 pcs
Shackle 9.5 T x 1 pc
Shackle 8.5 T x 1 pc
* Pennant Wire 28 mm 13 meters (swl 10T) x 1 pc
Pennant Wire 28 mm 12 meters (swl 10T) x 1 pc
Pennant Wire with Hook 23 mm 3 meters x 1 pc
Pennant Wire 11 mm 3.10 meters x 1 pc
Steel rope 20 mm x 33 meters 4.4
* Snatch Block GE 6386 CL 1/2 T x 2 pcs
Snatch Block GE 6386 CL 1/3.7 T x 1 pc
Snatch Block with hook ( hook swl 2 T) GE 6386
GE 6386 CL 1/2 T
Snatch Block GE 6386 CL 1/2.9 T x 2 pcs
Wooden Single sheave block 1.7 T x 2 pcs

Navigation Equipment

List of Navigation equipment

* NCR - 33 Navtex Receiver (status OK)
* NBW - 1000 BANWAS (status OK)
* Simrad Autopilot AP 70 MK2 (status OK)
* Simrad AI 50 Class B AIS Transceiver (status OK)
* JRC Radar/Ata system Model :
** JMA-5310-6 JMA-53320-7/9 (X-BAND)
** JMA-5330(S-BAND) (status OK)
* JRC J-NAV 500 GPS Navigator (status OK)
* Francesco Fuselli Model 679 Magnetic Compas
* Rudder Indicator

List of Communication equipment

* NSR NVR 3000 VHF Radio (status OK)
* Sailor Compact RT 2048 VHF Radio (status OK)
* ENTEL 649 GMDSS VHF HT portable Radio x 2 pcs
(one of them is not working (battery problem) but it still have 2
spare battery for Emergency)
Navigation Light
* Red P/s x 2 light (all ok)
* Green S/s x 2 light ( one of them is off)
* Mast HeadLight (one of them is off)
* Stern light x 2 (one of them is off)

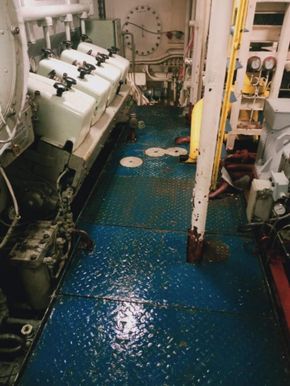

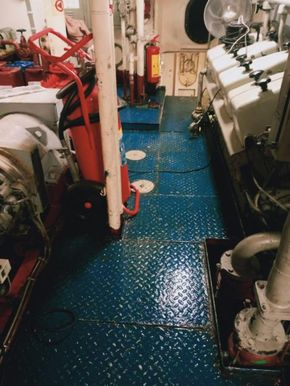

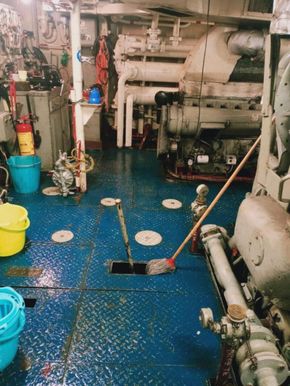

Engine(s)

Total power output (BHP) 2012 bhp
Main Engine(s) (make,type) 1 x NOHAB DIESEL type F38V
Main Propulsion System SINGLE SCREW
Speed cruising 10 knots

DIESEL GENERATOR X 2 - VM Circa 50 K
D/G #1 ( 11563680 ) : Status = Good
D/G #2 ( 11563681 ) : Status = Good

ME Running hrs: 20523.
Turbo recently overhauled.

Certification

Flag: St. Kitts and Nevis
Class Society and Notation Capital Register of Shipping Cs1 TUG CM
Next SS 03/2029
